A digital unit with special capabilities.
Perfect for you.
The jet X is the most advanced paint spray gun from SATA. With its innovative nozzle concept, it achieves a new outstanding surface quality for basecoats and clearcoats. It helps you achieve better finishes more easily.

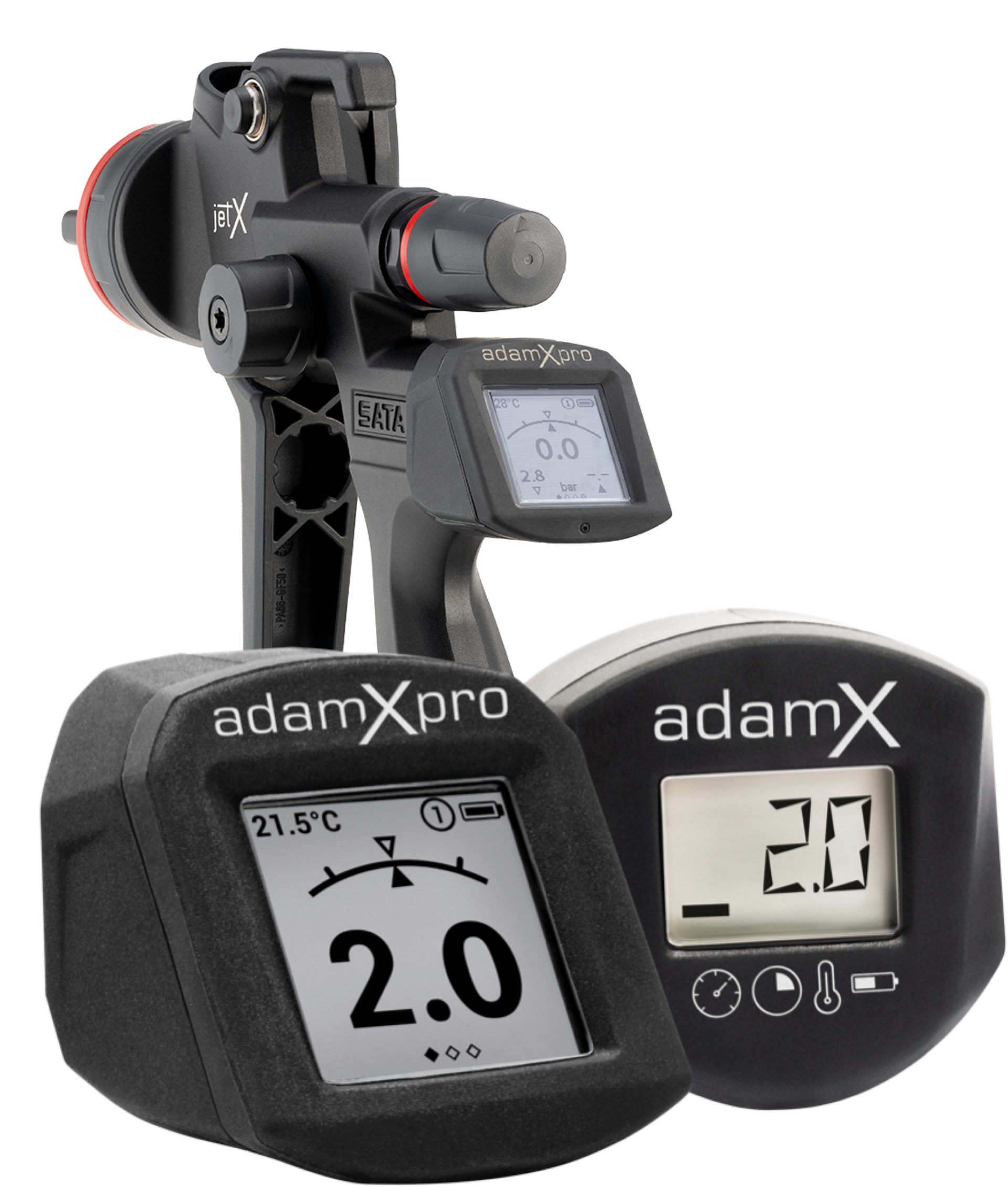

The top model. The jet X DIGITAL pro is equipped with the adam X pro and therefore offers the widest range of functions. For standardizable and reproducible painting results – perfect for demanding painting work.
With their diverse functions, they support you in making processes transparent and avoiding errors.

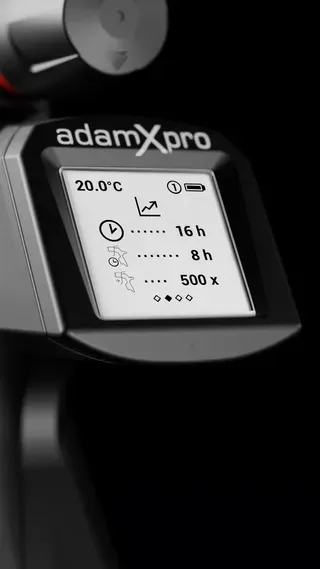

The statistics

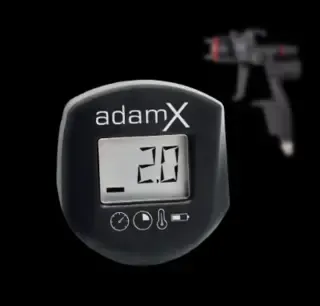

Equipped with the adam X, the jet X digital represents the entry into the world of digital functions at SATA. It measures inlet pressure, temperature, operating time and battery status to ensure precise control and optimum painting results.

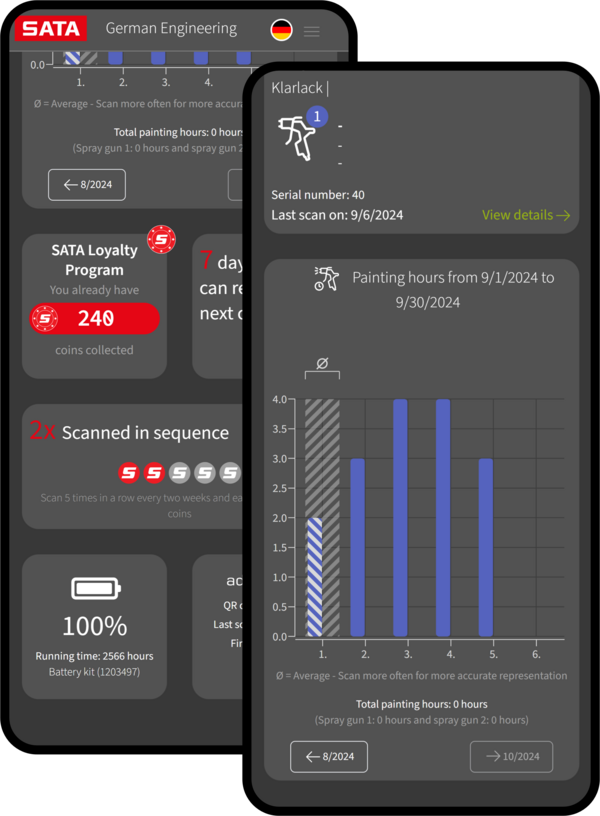

The digital dashboard
The best database only makes sense if it is also analyzed. To make this easier, the adam X pro can be connected to a personal dashboard on a PC or smartphone. This is a digital control center in which the most important parameters of the painting process can be stored and analyzed. The data is transmitted via a QR code that is shown on the display of the adam X pro.
The adam X pro offers a completely new variety of digital functions and an innovative operating concept: It is controlled by double-tapping and tilting.
Get to know the adam X and
adam X pro!
The jet X contains all our know-how. But with a tool like this, it’s the feel and personal impression that counts. That’s why the best thing is to experience it for yourself.
Highlights
The functions of the adam X pro
The menu structure is orientated towards the needs of professionals who work with the jet X on a daily basis. It is divided into two levels: the first level shows the main screen - it is always the first screen to appear after activating the adam X pro. Also on the main level: the statistics and the QR generator for transmitting data to the digital dashboard. The settings are found on the second level.

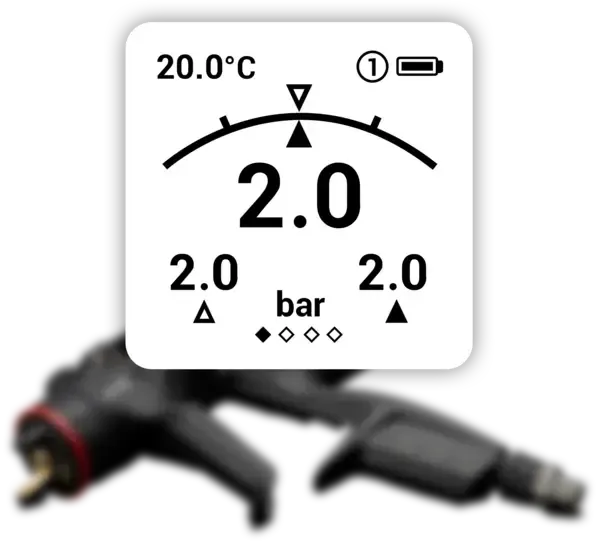

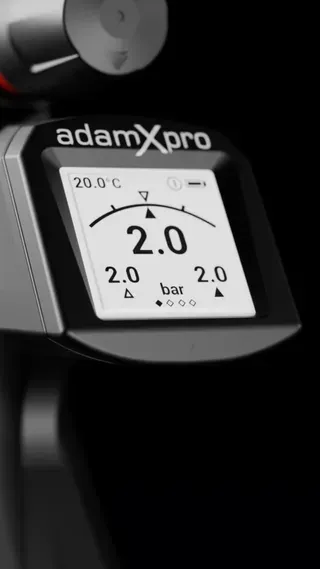

The main screen shows the most important parameters in a clearly organized display:
- The current actual pressure
- The previously set target pressure
- Deviations between actual and target pressure in a graphical visualisation

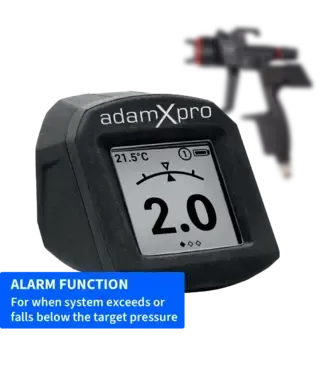

- An alarm symbol if the actual and target pressure differ by more than 0.2 bar (3 psi)
- The dynamic pressure that was applied when the trigger was last actuated
- Also: The ambient temperature and battery status
During painting, the display changes to a simplified, clearer display.

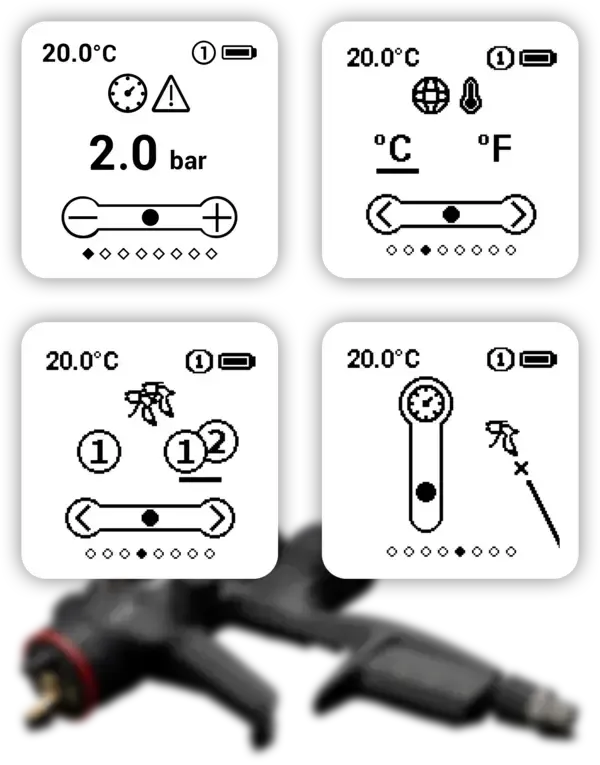

Target dynamic pressure
What specifications does the paint manufacturer provide? What are your personal preferences? The target value for the dynamic inlet pressure is set here. This value is also displayed on the main screen, shown in comparison with the actual pressure in a graphical visualization. Deviations of more than 0.2 bar trigger an optical alarm.

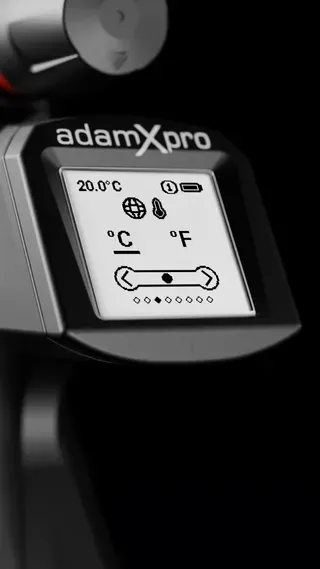

Pressure and temperature units
The pressure and ambient temperature displays can be easily switched: from bar to psi and from °C to °F.
Multi-gun mode
The adam X pro can be used with two paint spray guns. When multi-gun mode is activated, a menu appears when the compressed air hose is connected in which the paint spray gun currently in use can be selected.
Other settings
Other functions can also be found at the settings level: calibration of normal pressure, information on hardware and software versions and resetting the statistics.
Worthwhile in every respect. Especially for Loyalty customers.
The adam X pro rewards your loyalty! If you take part in the SATA Loyalty Program coins & more, you can collect SATA coins with the new adam X pro and redeem them for attractive rewards in the SATA Loyalty App.
Take part and benefit!
adam X pro
A digital world for the jet X.
The most digital SATA of all time
adam X pro
